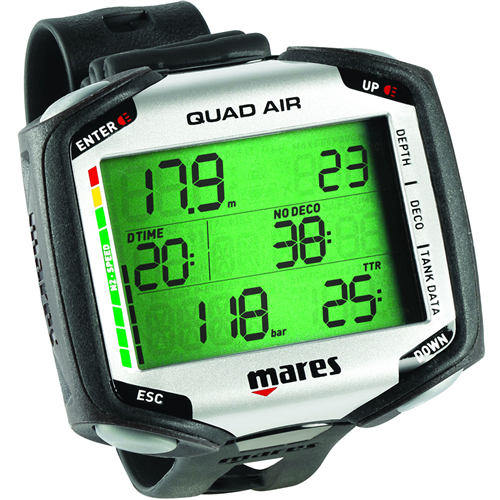

Mares Quad Air


  • User friendly design
  • Clear display, Large size information
  • 4 button intuitive user interface
  • Allows switching of gases during dive
  • RGBM Mare-Wienke algorithm
  • Optional Transmitter Available

1 in stock (can be backordered)

SKU: 414169 Category:


The innovative Mares Quad Air Wrist Dive Computer is a step-up from the Quad, able to read the tank’s pressure, it receives data directly from the dive tank via a wireless transmitter Optional. Also includes a magnificently clear display, with jumbo size information, three-row layout and four buttons for intuitive use! Three-row layout comprises all relevant data including tank pressure with optional transmitter. Two customizable fields for ancillary information. Mirrored button function during dive, option to view dive time including seconds and a runaway deco alarm. Computer has a multi-gas capability, decompression dive planner with user adjustable surface interval and a long battery life, that is user replaceable.

The functions of the Quad Air computer can be grouped into three categories, each corresponding to a specific mode of operation. Surface mode: Quad Air is dry on the surface. You can change settings, review your logbook, use the dive planner, see remaining desaturation after a dive, download to PC and much more. Dive mode: Quad Air monitors depth, time, tank pressure (optional), temperature and performs all decompression calculations; dive mode itself can be broken down into 4 sub categories: – pre-dive (Quad Air is on the surface but actively monitoring ambient pressure, so that it can begin to calculate a dive the instant it is submerged below 4’/2 meters); – dive – surfacing (Quad Air is on the surface at the end of a dive; dive time calculation is halted but if the diver submerges within three minutes the dive is resumed including the time spent on the surface); – post-dive (after the three minutes of surfacing mode, Quad Air closes the logbook and reverts to a display showing desaturation time, no-fly time and surface interval; this lasts until the desaturation and the no-fly time both have been reduced to zero). Sleep mode: the computer is on the surface after 1 minute without operation (3 minutes from pre-dive mode). Though the computer appears to be turned off completely, it is still active. Quad Air computes tissue desaturation and checks the ambient pressure once every 20 seconds for uninterrupted monitoring of the environment.

Quad Air, operating altitude with decompression sea level to approximately 12,100′ (3700 meters) – without decompression (gauge mode) at any altitude. Decompression model: RGBM Mares-Wienke (10 tissues). Depth measurement: – Max displayed depth: 492′ (150 meters) – Resolution: In feet is always 1′ (0.30 meter). From 0.1 meter until 99.9 meters and 1 meter at depth deeper than 100 meters. Resolution – Temperature compensation of the measurement between 14°F to 122°F (-10°C to +50°C) – Accuracy from 0 to 262′ (0 to 80 meters): 1% ± 1′ (0.2 meters) Temperature measurement: – Measurement range: 14 °F to 122°F (-10°C to +50°C) – Resolution: 1°F (1°C) – Accuracy: ± 4°F (± 2°C). Clock: quartz clock, time, date, dive time display up to 99 minutes. Oxygen concentration: adjustable between 21% and 99%, ppO2 max range between 17.4 psi and 23.2 psi (1.2 and 1.6 bar). Logbook memory: 35 hours of dive profile at 5-second sampling rate. Operating temperature: 14°F to 122°F (-10°C to +50°C). Storage temperature: -4°F to 158°F (-20°C to 70°C). Display: – Diagonal: 2.75″ (70 mm) mineral glass. Power supply CR2450 user-replaceable battery with a battery life of 100-150 dives. Actual battery duration depends on the usage of the back light and the water temperature.

Mares Quad Air Wrist Computer Features:

  • Step-Up from the Quad
  • Now, Reads Tank Pressure w/Optional Transducer
  • Wealth of Great Features! Mares Latest Dive Computer
  • Magnificently Clear, Super User-Friendly Design
  • Clear Display with Jumbo Size Information
  • Two Customizable Fields for Ancillary Information
  • 4-Buttons for Intuitive User Interface
  • Mirrored Button Function During Dive
  • Option to View Dive Time Including Seconds, Great for Safety Stops
  • Runaway Decompression Alarm
  • Decompression Dive Planner w/User Adjustable Surface Interval
  • User Replaceable CR2450 Battery
  • Software Upgrade-able Ready to Grow w/You
  • Segment Display, Provides Needle-Sharp Information
  • Intelligent Placement of Information for Easiest Readability

Mineral Glass Display:

-Tempered Glass

-Superior Scratch Resistance

-Improved Readability in All Diving Conditions & Viewing Angles

Gas Switching: One or More Oxygen Enriched – Gases (up to 99%)

-Switching Gases During the Dive

-Benefit from Shorter Decompression Times

  • Maximum Depth Display: 492′ (150 meters)
  • Memory Capacity: 38 Hours
  • Imperial or Metric Units of Measure
  • Set for Fresh or Saltwater Diving
  • Stopwatch, Power Indicator and Plan Mode Functions
  • Residual Nitrogen Reset, Audio and Visual Alarms, Ascent Rate Functions
  • Altitude Adjustable to 12,100′ (3,700 meters)
  • Algorithm: RGBM Mare-Wienke
  • Clock: Quartz, Time and Date
  • 12 or 24-Hour Format
  • Back Light Function for Diving in Low Light Conditions
  • Air, Nitrox or Bottom Timer Device

Dive Mode:

-Current Depth, Maximum Depth

-Stopwatch, Dive Time and Temperature

-Ascending; Ascent Speed in Feet or Meters per Minute

  • Download/Upload Options for PC or MAC Computers
  • Durable Rubber Wrist Band
  • For Optional Download Kit

Additional information

Weight .5 lbs
Dimensions 5.75 × 6.5 × 5.25 in
