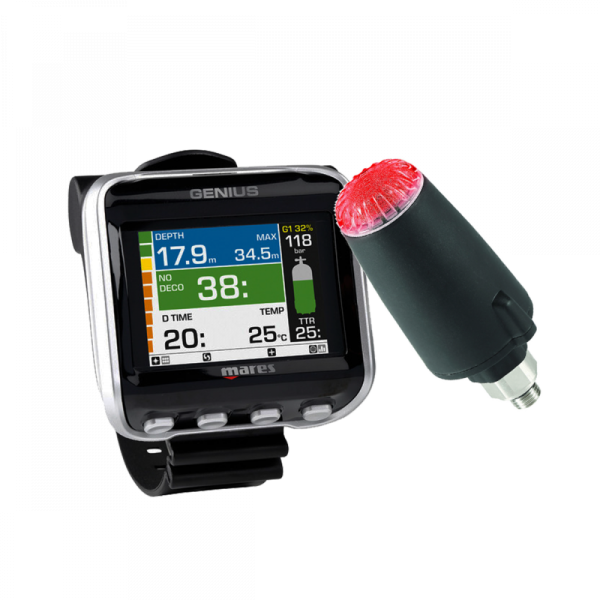

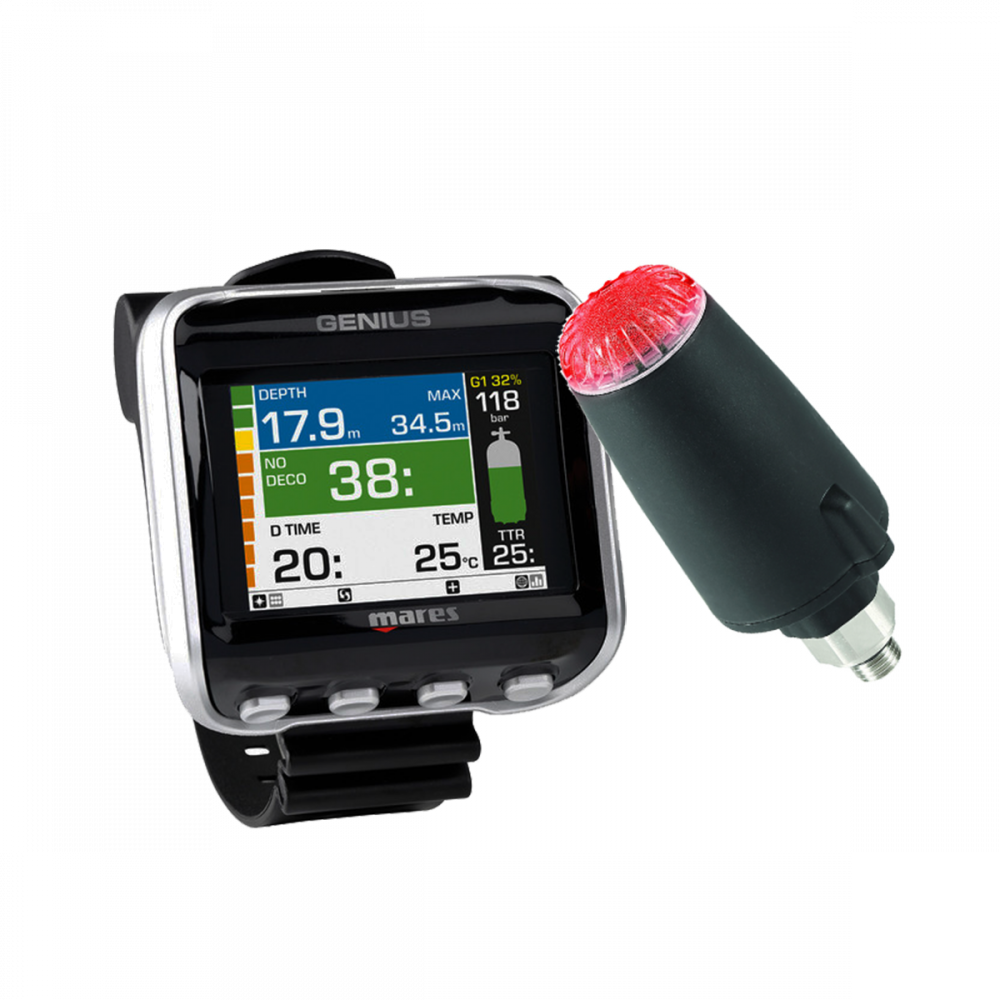

Mares Genius w/ LED Tank Module


  • Full Color High Resolution Display
  • Newest ZH-L16C Algorithm
  • Full Tilt Digital Compass
  • Hose Less Air Integration Function
  • Smart Battery Management System

Available on backorder

SKU: 495125 Category:


The Mares Genius Wrist Dive Computer is the latest addition to Mares instrument line up. This full color high resolution display computer is powered by the newest ZH-L16C algorithm with gradient factors and predictive multi-gas functions. Computer is suitable for Air, Nitrox and Trimix with a capability of up to 5 gases. Computer has a full tilt digital compass (up to 80°) with bearing memory and stopwatch for precious underwater navigation procedures. The Genius has a hose less air integration function with the included Mares LED transmitter will provide cylinder pressure up to 4,350 psi (300 bar) and more. Computer can monitor up to five transmitters at a time with optional transmitter making it a great choice for dive guides and instructors. Computer is altitude adjustable to approximately 12,100′ (3,700 m). Depth display is 492′ (150 meters). Time is kept by a quartz movement providing time, date and dive time. The clock menu allows you to set the time format (12/24-hour), time, date, time zone shift and wake-up alarm.

The Genius computer has a bottom timer mode with reset able average depth and stopwatch functions. Decompression dive planner with additional surface interval function allows precious calculation of deco dive activities. Brilliant logbook with multiple graphs and a capacity of more than 1,000 hours of dive profile at 5-second sampling rate. A smart battery management system that has 40 hours of dive time per full charge from its lithium-ion rechargeable battery, with battery charge indicator. Computer is Bluetooth connectable for direct connection to a smartphone. The computer has a night mode function for low light conditions, map viewing function during a dive, tissue saturation graph with detailed information and the underwater menu allows certain settings to be changed during the dive. Future deco and runaway deco alarm (proprietary) function. The Genius Computer has audio and visual alarms. The TFT LCD display has a mineral glass lens and a 2.7″ (68.6mm) diagonal display. Units of measure can be set for imperial or metric and for fresh or salt water.

The Mares Air Dive Computer’s LED Tank Module is mounted onto an HP port of the first stage regulator, and its main function is to transmit tank pressure data via hose-less coded RF protocol to the dive computer (for computer. The dive computer then displays the tank pressure and calculates gas consumption rate and time remaining before reaching the reserve value. For this to happen, the tank module and the dive computer must be paired. The LED tank module features also, as the name suggests, an LED on the top of the tank module body. The LED can be used on the surface before a dive to distinguish between a full and an empty tank without needing a dive computer to display the exact value. During a dive the LED blinks when certain pressure levels have been reached and can thus alert your dive buddy or dive guide when you have reached the half tank mark or the tank reserve.

The tank module turns on automatically upon pressurization to at least 145 psi (10 bar). It turns off automatically when the pressure drops below 145 psi (10 bar). To save battery power, the tank module turns itself off also when the pressure does not change over more than 4 minutes. This prevents unnecessary battery consumption in case of a pressure check well ahead of a dive with the tank left open afterwards, or in case the tank is not closed, and the first stage purged immediately after a dive, or in the case of stage tanks that are left pressurized during the dive even when not in use. The tank module turns itself on again when a difference of pressure of more than 14.5 psi (1 bar) is sensed.

Upon pressurizing the tank module, if a pressure of 2600 psi (180 bar) or more is sensed, the LED will blink 10 times in Green color in 4-second intervals. The value of 2600 psi (180 bar) can be set by the user via Android app*.

For battery preservation, the LED turns off after the surface check and stays off until a pressure of 1450 psi (100 bar) is reached (half tank warning). At that point it blinks in Yellow color once every 4 seconds. Once the tank pressure reaches 725 psi (50 bar) the LED blinks in RED color once every second (tank reserve). Transmitter is powered by a CR123A user-replaceable battery – Battery life: 150-200 dives.

Air Integrated computerized monitoring of tank pressure is used to determine a bottom time which depends not only on your depth, but also on your actual gas consumption, increasing your dive safety. In addition, the gas consumption (referred to the surface) is displayed on the computer for more control over your dive. The computer does this via the HP Transmitter attached to your first stage regulator by sampling the pressure drop over time and giving you the rate of consumption in minutes remaining. If the time remaining is greater than the no-decompression limit for your depth it will display the shorter time allowed.


Mares Genius Wrist Computer with LED Transmitter Features:

  • Latest Addition to Mares Instrument Line Up
  • Complete w/Mares LED Tank Module

Mares Genius Wrist Computer:

  • Full Color High Resolution Display (TFT)
  • TFT LCD Display: Mineral Glass Lens, 2.7″ (68.6mm) Diagonal Display Window
  • Newest ZH-L16C Algorithm w/Gradient Factors and Predictive Multi-Gas Functions
  • Suitable for Air, Nitrox and Trimix /Capability of Up to 5 Gases
  • Full Tilt Digital Compass w/Bearing Memory & Stopwatch for Precious U/W Navigation
  • Compass Tilt Up to 80°
  • Hose less Air Integration Function
  • Monitor Up to Five Transmitters at Once
  • Great Computer Choice for Dive Guides and Instructors
  • Altitude Adjustable to Approximately 12,100′ (3,700 m)
  • Depth Display: 492′ (150 meters)Timekeeper: Quartz Movement Provides: Time, Date & Dive Time

Clock Menu:

  • Allows Set Time Format (12/24-hour)
  • Time, Date, Time Zone Shift
  • Wake-Up Alarm
  • Bottom Timer Mode w/Reset able Average Depth and Stopwatch Functions
  • Decompression Dive Planner w/Additional Surface Interval Function
  • Precious Calculation of Deco Dive Activities
  • Brilliant Logbook with Multiple Graphs
  • Logbook Capacity: More than 1,000-Hours of Dive Profile at 5-Second Sampling Rate
  • Smart Battery Management System: 40-Hours of Dive Time per Full Charge
  • Bluetooth Connectable for Direct Connection to Smartphone
  • Night Mode Function for Low Light Conditions
  • Map Viewing Function During Dive
  • Tissue Saturation Graph with Detailed Information
  • Underwater Menu Allows Settings Changes During Dive
  • Future Deco and Runaway Deco Alarm (proprietary) Function
  • Units of Measure: Imperial or Metric
  • Set for Fresh or Salt Water

Mares Air LED Tank Module:

  • Transmit Tank Pressure Data via Hose-Less Coded RF Protocol
  • LED On Top of Tank Module Body

LED Functions:

  • Surface Mode;
  • Distinguish Full/Empty Tank w/o Dive Computer Display Exact Value
  • During Dive;
  • LED Blinks at Certain Pressure Levels
  • Alert Dive Buddy/Guide w/Half Tank or Reserve Reached

LED Functions (Colors):

  • 2600 psi (180 bar) or More, Blink 10 Times in Green Color
  • 1450 psi (100 bar) 1/2-Tank Warning, Blinks in Yellow
  • Green/Yellow Blinks in 4-Second Intervals
  • 725 psi (50 bar) LED Blinks in RED Color Once Every Second
  • Transmits Cylinder Information to Computer Screen
  • Provides Pressure Display: Up to 4,350 psi (300 bar)
  • Eliminates Pressure Gauge Hose
  • Streamlines Your Diving Profile
  • Gives Gas Time Remaining
  • Increased Dive Safety
  • Power User Replaceable CR123 Battery
  • Battery Life: 150-200 Dives

Additional information

Weight 2 lbs
Dimensions 9 × 7.25 × 5.75 in
